EV Charging Station Use for 20'ish

STEALTH

Campervans*



Many charging stations provide free power, not to do EV owners a kind favor so they can drive around for free, but to reduce air pollution and wars over oil for the benefit of all life. The debate on whether small, custom stealth campervans* (and larger RVs in the future) should qualify is easily settled by reviewing the following benefits:



Eco Friendly

  • Reduce generator air and noise pollution

  • Reduce alternator charging / driving

  • Reduce propane dependency (cooking, etc.)

  • Battery lasts longer with four stage charging

  • Energy sources increasingly renewable and clean

  • Makes it more practical to live in a minimalist campervan and use as daily commuter

  • In the future can give power to the grid from solar panels when fully charged



Other Benefits

  • Can park up front in many premium EV parking spaces if less than 21' long, many are free

  • Save money dry camping

  • Do others a favor by freeing up high demand power campsites

  • Balance your battery bank cells when using a charger such as the ISDT T6

  • Very convenient: Don't have to fiddle with your own cords or adapters

  • Will get a lot of attention (if you want to make new friends, talk with others, etc.)



Logical argument for non electric driving vehicle charging

  • There's no defense necessary because plug-in hybrids are allowed to use the same charging stations. Those vehicles don't have to plug in because they have a gas engine. This is not all about an all electric vehicle needing to get home, it's mostly about preventing air pollution. An RV plugged in prevents air pollution (less generator, propane, driving around for alternator charging, etc.).

  • Eco: Reduces generator charging, alternator charging / driving, propane dependency (cooking, etc.)

  • Eco: Battery lasts longer with three+ stage charging

  • Main reason charge stations exist is to reduce pollution, which we are doing

  • In the future can give power to the grid from solar panels when fully charged

  • An alternator charger for the RV battery causes stress on electric systems that EV charging alleviates.

  • Campground and RV park electric hookup sites are almost always full. When a <21' RV uses an EV charger, he frees up electric campsites for those who have larger vehicles and need them.



Warnings

  • *Install only in a DIY approx. 20' stealth campervan (no long wheelbase vans and certainly not extended length). Do not attempt this with a long wheelbase Sprinter, Transit, etc., name-brand RV, truck camper, class A, B, C, etc. as doing so will raise red flags against us resulting in the overall banning of this. Also you will not be able to fit a rig larger than 20' into these parking spaces.

  • Install J1772 adapter in a non-EV at your own risk. EV charge stations are usually 200 to 240 volts which can be dangerous if you make a mistake with the wiring, therefore I have to recommend a licensed electrician do that work.

  • True EVs will not let you drive off while plugged in. Non EVs with aftermarket EV charge ports do allow you to drive off while plugged in which will result in damage to property or injury to others. It is highly recommended to install a lighted hard wired to the EV cable voltmeter at the ignition switch and place a note on your dash display "WARNING: DETATCH EV PLUG" while charging.

  • J1772 charger voltage may vary from 110 to 240V. This is why it's highly recommended and critical to install a voltmeter to the system before connecting any appliance or device directly to the inlet wiring.

  • There is a small chance you could receive a citation for using an EV charger on a non EV. You could try parking next to an EV parking spot if the cord will reach AND if the cord will stay flat on the ground to prevent tripping. That way someone could take the actual EV spot if they need to charge a car to get back home (reduces chance of a feud or fine).

  • Verify the maximum amps your battery / battery bank can handle is greater than the amount of amps you charge.



Notes

  • Consider prioritizing the installation of an alternator to auxiliary battery charger, also known as: B to B charger, battery isolator, etc. because it's best to avoid EV charging stations for reasons mentioned above in the warnings list. Also, you could spend so much time driving around trying to find a free EV charging station that is available that you could achieve a charge during the driving. I have done just that many! times.

  • Download the "Volta" app so you can see which free charging stations are available in your area (shows when and where each charging station is available). Some EVs flash a green light indicating their car is charged and you can remove the plug from their car and plug into your RV parked next to them without waiting on them to leave or return. Or if the sign says something like 2 hour limit and they've been there over two hours, you can remove the charge plug and use it. That is considered acceptable.

  • Charging station etiquette: Place note "Use this charger for essential need, then please plug back in" (sometimes EV drivers need to charge to get back home, etc.); Here you can purchase pre-made place-cards

  • Some EV charge stations are fee based or may be restricted to Tesla cars.

  • I am achieving about one volt of charging per hour using the recommended parts with one Tesla Model S battery module. So for example, to go from 20.4V (nearly discharged) to 24.4V (fully charged at a safe level), it takes me four hours. It is possible to get a larger charger and PSU for faster charging (not recommended due to overheating risks, bulkier equipment and higher costs) or a smaller (cheaper) charger and PSU for slower charging (not recommended due to extra time tying up an EV station).

  • I predict in the future more people will live in vehicles/RVs due to increased conveniences, better designs and need to relocate frequently due to climate changes, etc.

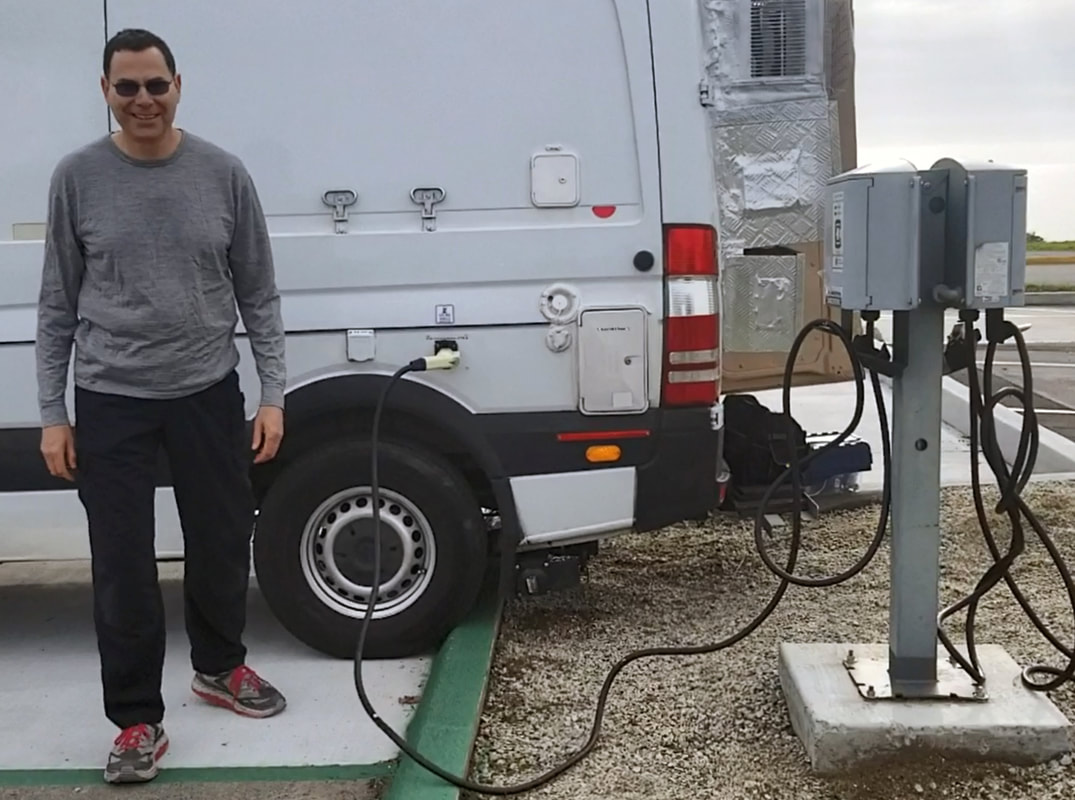

  • On December 20th, 2018, Eric Talaska - Eco Neato was the first known to successfully install an EV charge station adapter system in an RV / campervan (or possibly on any non-electric driven vehicle) and on the next day was the first known to cook using the charge station power with an electric induction stove. There have been EVs connecting to campground power, but this is the first RV to connect to an EV charging station.



Recommended Parts

  • ISDT T6 BatttGO ChargerX6 30A / 800W charger around $90 as of late 2019. Simple to use. Also need to buy

  • Mean Well RSP-1000-24 power supply around $200 as of late 2019. That power supply is for 24V, so get the one for your aux/rv battery voltage. You could get a cheaper power supply (PSU), but if you do, you will have to risk getting a citation for parking in a EV spot as the charge will take much longer and be less reliable. This PSU makes some typical PSU fan noise. Turning on a vent that pulls are out and running an air filter is recommended.

  • J1772 adapter from TucsconEV.com, about $100 as of late 2019. This is a one person business with personalized support.



Install Tips

  • Try to locate the entry port about in the middle of the vehicle so you can drive in straight or back in as desired rather than according to power cord length. In my example, I installed towards the rear only because I used an existing hole rather than drill a new one.

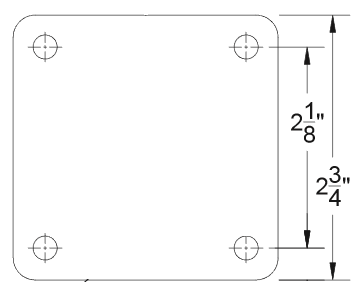

  • The hole needs to be 2" to 2 1/8". If slightly too small, you can cut and bend inwardly a bit.

  • Remove the existing four bolts. Use roofing screws. Use butyle tape to prevent water leaks. Always keep lid closed to prevent corrosion.
